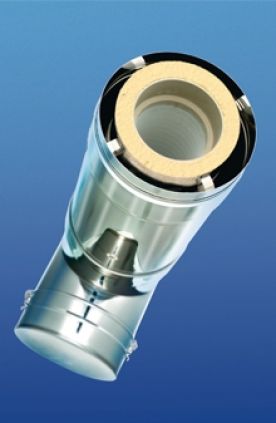

High grade ceramic
exterior chimney ABÜ
Assembly
Exhaust conduit for
overpressure operation
exterior chimney ABÜ
Assembly
Exhaust conduit for
overpressure operation
| Overview | Downloads |
Wichtigste Größen
| ACE 8 |
26 cm |
| ACE 10 |
26 cm |
Weitere Größen
auf Anfrage
Application
Gas/oil condensing boilers
Chimney systems
Triple-shelled exhaust conduit, colours: cobalt blue, anthracite, silver
Licence number
Z-7.2-3135, CE - identification for the high-grade ceramic pipes A1N1/A2P1/B2N1/D3P1
System components
High-grade ceramic pipe, length 1 - 1.5 m, wall brace and console, elastomer seals
Technical data
Moisture resistant for oil and gas condensing boiler technology, ambient air-independent, overpressure operation
Areas of application
Exhaust temperatures of 30 - 200° C, oil or gas
Recommended cross sections
für Gas-Brennwert bis 25 KW 80 mm über 25 KW berechnen! für Öl-Brennwert bis 25 KW 80 - 120 mm je nach Hersteller
Connection possibilities
For gas condensing boilers up to 25 kW 80 mm; calculate if over 25 kW! For oil condensing boilers up to 25 kW 80-120 mm depending on make
