High grade chimney exterior chimney ACE
Assembly
Chimney for solid fuels
Wichtigste Größen
ACE 12
|
28,5 cm
|
ACE 14
|
31 cm
|
ACE 16
|
31 cm |
ACE 18
|
36 cm |
ACE 20
|
36 cm |
ACE 25
|
41 cm |
Sonderausführungen
auf Anfrage
Application
All fuels (W3G)
Chimney systems

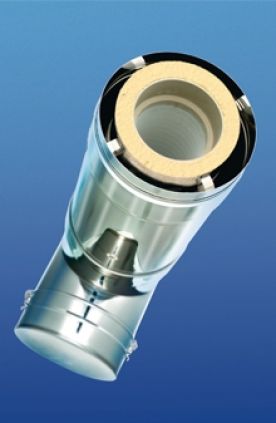

Triple-shelled exterior chimney with stainless steel casing and high-grade ceramic inner pipes
Licence number
Z-7.1-3349, CE identification for the high-grade ceramic pipes A1N1/A2P1/B2N1/D3P1
System components
Inner pipe: high-grade ceramic with insulation, outer pipe: stainless steel casing, wall holder and console
Technical data
Double-walled, insulated exterior chimney for all fuels
Areas of application
Exhaust temperature up to 400°C, moisture-resistant (W3G)
Recommended cross sections
For fireplaces/tiled stoves 160 - 200 mm, for gas low-temperature up to 25 kW 120 mm, for oil low-temperature up to 25 kW 120 mm, wood pellets 120-200 mm depending on make and size
